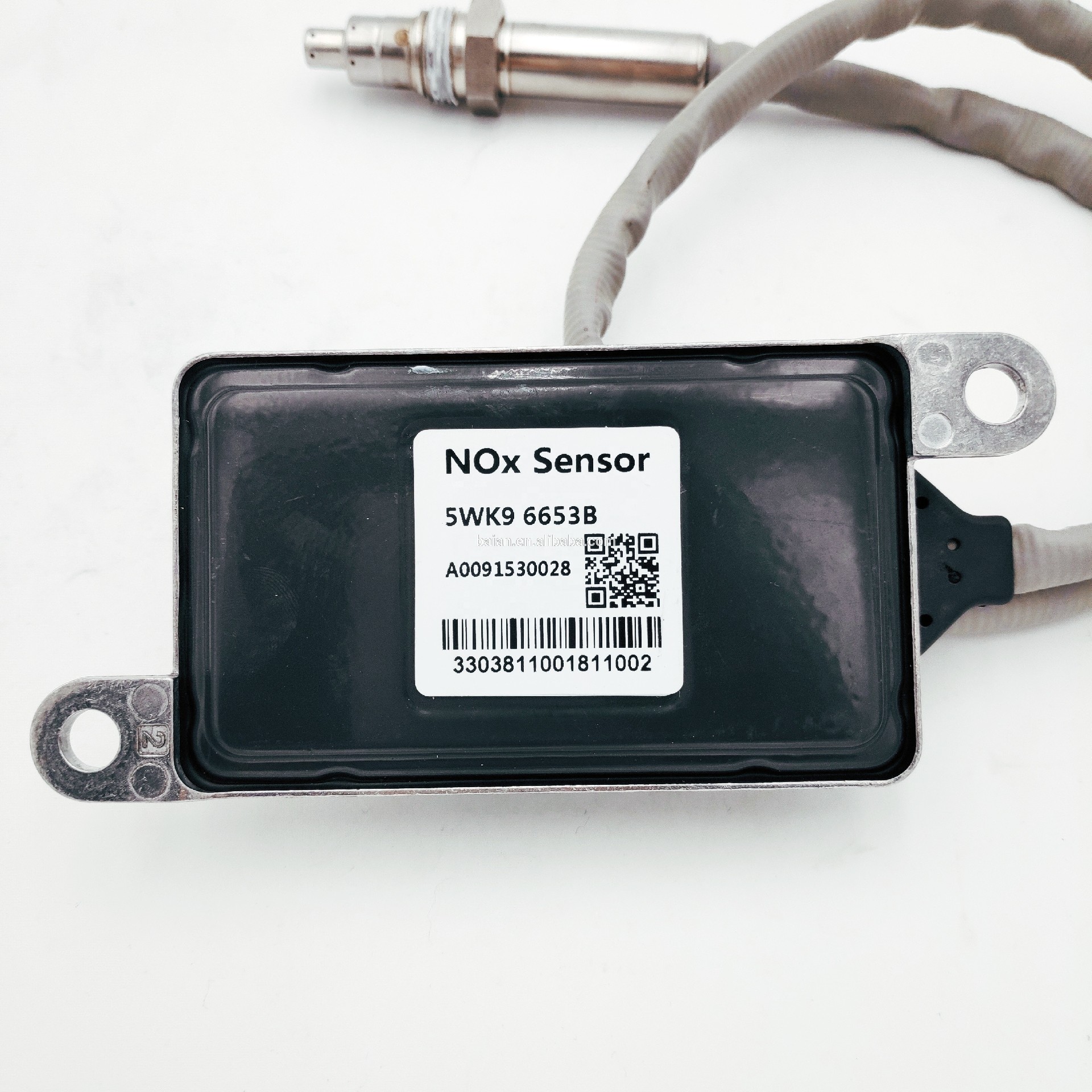

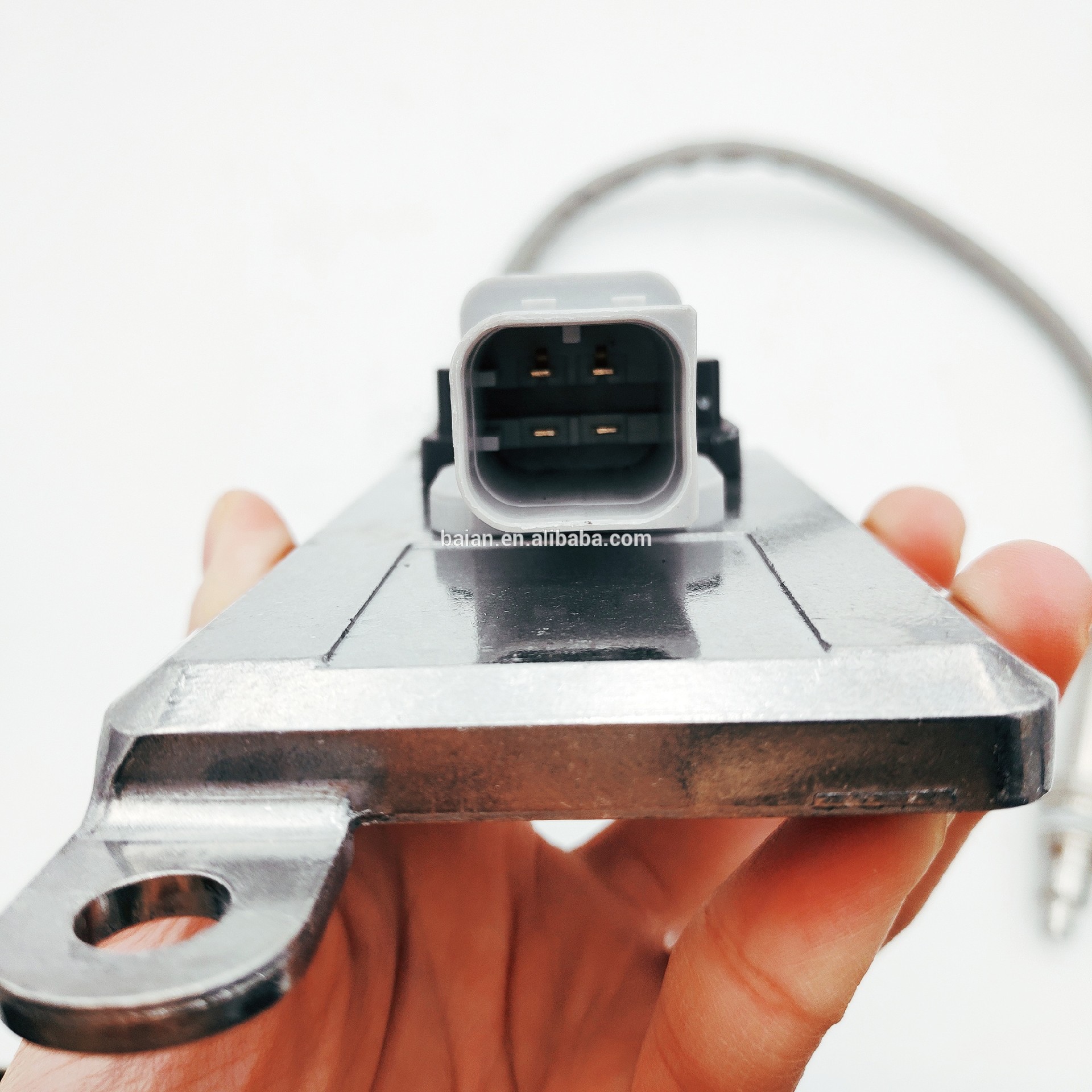

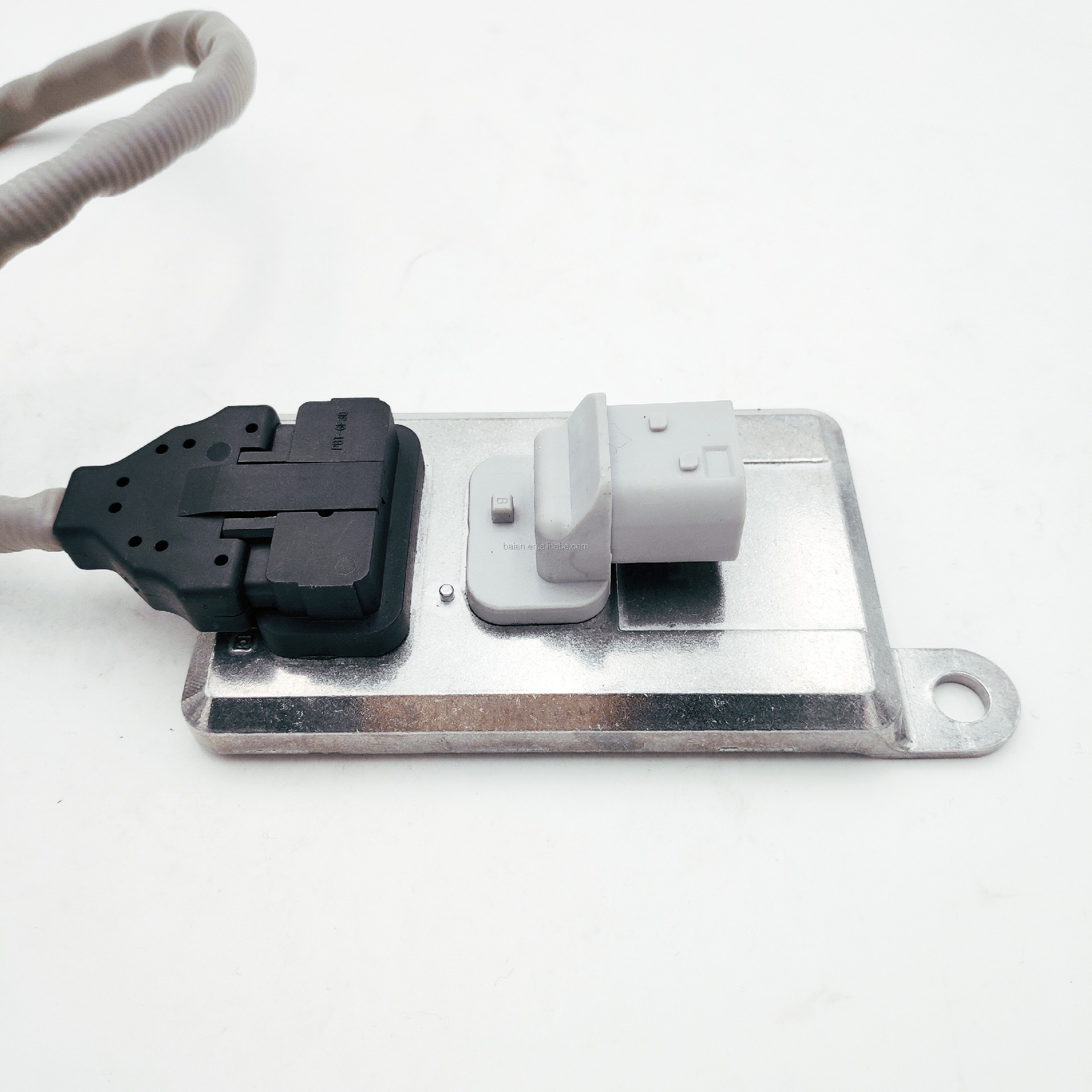

Nitrogen Oxide Sensor Mercedes Actros A0091530028 A0101539528 5WK9 6653B

Voltage: 24V

Length: 590MM

Positions: After The CAT / Downstream

Replaces: A009-153-00-28, A009 153 00 28, A0091530028

A010-153-95-28, A010 153 95 28, A0101539528

5WK9 6653C, 5WK9 6653B

Suitable for: Mercedes Actros (2013 Onwards)

- Description:

NOx sensor (SNS) used for catalyst management in vehicles with gasoline or diesel engines. The smart NOx sensor consists of a ceramic sensor element and an electronic control unit (ECU). measures the NOx concentration, air/fuel ratio (A/F ratio) and equilibrium oxygen partial pressure in the exhaust gas of combustion engines (gasoline and diesel) and can be used for

● Lean burn engines (NOx trap)

● Diesel engines (SCR catalysts, NOx trap, closed-loop NOx control)

● On board diagnostics, OBD (gasoline and diesel engines)

The specified mounting position of the NOx Sensor is downstream of NOx trap or upstream or downstream of SCR catalyst. (See also => Built-in-instruction)
