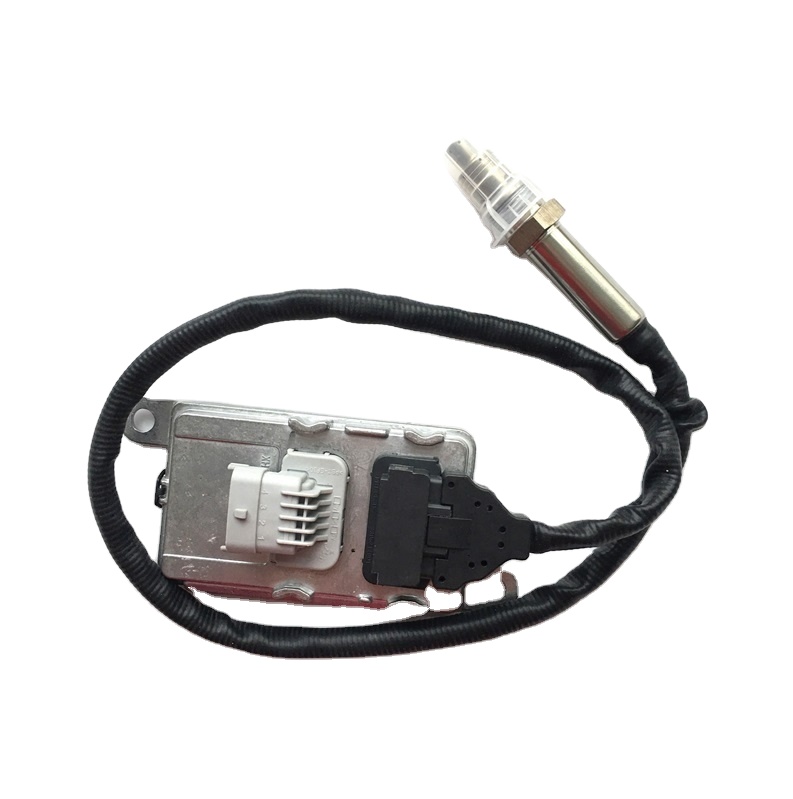

Nitrogen Oxide Sensor Continental Replacement 4326864 for Cummins 4326867 5WK9 6754C

Voltage: 24V

Length: 890MM

Positions:

Replaces: 4326867, 5WK9 6754C, 5WK96754C

Suitable for: Cummins

Why Choose US:

NOx sensor (SNS) used for catalyst management in vehicles with gasoline or diesel engines. The smart NOx sensor consists of a ceramic sensor element and an electronic control unit (ECU). measures the NOx concentration, air/fuel ratio (A/F ratio) and equilibrium oxygen partial pressure in the exhaust gas of combustion engines (gasoline and diesel) and can be.

Used for

● Lean burn engines (NOx trap)

● Diesel engines (SCR catalysts, NOx trap, closed-loop NOx control)

● On board diagnostics, OBD (gasoline and diesel engines)

The specified mounting position of the NOx Sensor is downstream of NOx trap or upstream or downstream of SCR catalyst. (See also => Built-in-instruction)

NOx Sensor Application Handbook

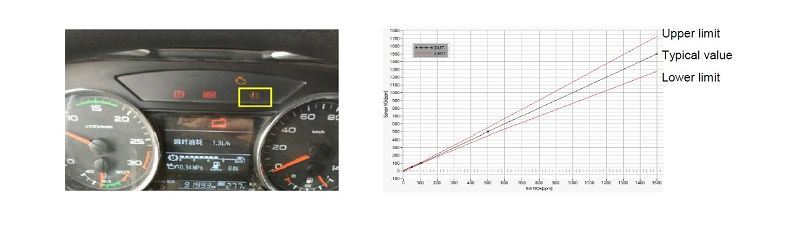

Failure Mode and Action --- NTF

● Failure: MIL light up, error will be eliminated after whole ATS replaced, but original NOx sensor have full functionality.

● Root cause: Operators do not detect right root cause.

● Action: Test NOx will diagnosis device, pls re-use NOx sensor if it has full functionality.

FAQ:

Q1: How can we have face to face talk with your company about the business?

A: Auto parts exhibition around the world, and also we warmly welcome your visit to our company.

Q2: What standards of quality control do you use?

A: TS16949 Standardized dust-free workshop, Profession QC team and Quality inspection system, 80% automation equipment, Multiple test process, Tracing code cover each product.
